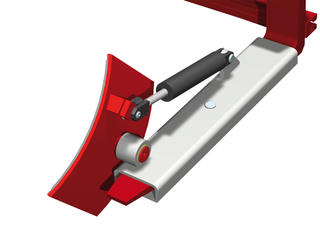

Rotating Roll Arms T106AH90

slip-on version - hydraulically turnable up to 90°, 1 hydraulic function

Technical Data

Refer to the data sheet for the exact dimensions of the product variants:

download pdf-datasheet Calculate residual capacity
Model
Number of hydr. arms
For Ø

mm

G
mm

D
mm
Arm-overhang per side.
E1)
mm
Min. distance to fork back
J2)
mm
Weight

kg
Price per pair

人民币
options calculations
(load) capacity
2T106AH90 1 560-630 400 250 120 700 102 On request calculate
2T106A-2H90 2 560-630 400 250 120 700 132 On request calculate
4T106A-2H90 2 560-630 400 250 120 700 140 On request calculate
1) Arm-overhang per side.
2) Minimum distance to fork shank
Rotating roll arms for other diameters available upon request.
special designs available for transportation of plastic drums (upon request)

Specification:

KAUP Rotating Roll Arms T106AH 90° are used when cylindrical loads are only occasionally picked up and tilted or turned.


Qualities:

  • Simple assembly
  • Solid construction
  • Other drum diameters available
  • Hydraulically turnable by 90° Adaption for drum handling possible
