Push-Pull T144S
with independent sideshift - 2 hydraulic functions
Technical Data
Refer to the data sheet for the exact dimensions of the product variants:

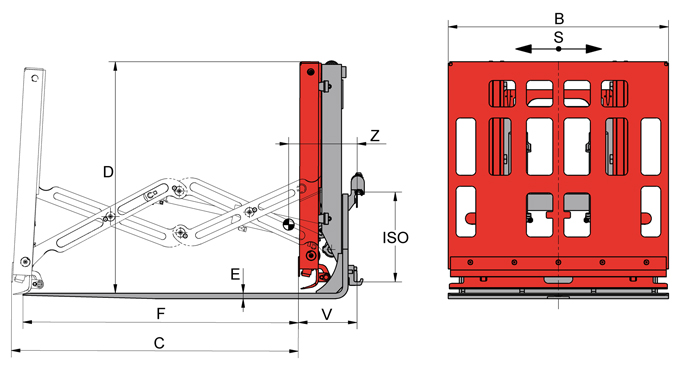

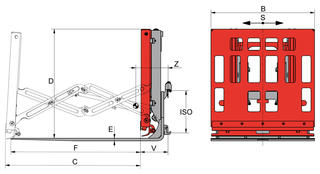

download pdf-datasheet Calculate residual capacity| Model | Cap. kg | LCD mm | B mm | C mm | D mm | E mm | F mm | S mm | ISO | V mm | CofG Z mm | Weight kg | Price 人民币 |  calculations(load) capacity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1T144S | 1.000 | 600 | 1.000 | 1.300 | 1.035 | 20 | 1.250 | ±100 | 2 | 257 | 340 | 545 | On request | calculate |
| 2T144S | 1.700 | 600 | 1.000 | 1.300 | 1.035 | 25 | 1.250 | ±100 | 2 | 262 | 360 | 600 | On request | calculate |
| 2T144S | 1.700 | 600 | 1.000 | 1.300 | 1.035 | 25 | 1.250 | ±100 | 3 | 262 | 360 | 600 | On request | calculate |
| 3T144S | 2.400 | 600 | 1.000 | 1.300 | 1.035 | 30 | 1.250 | ±100 | 3 | 267 | 375 | 665 | On request | calculate |
Specification:
Mounted directly on to the fork carriage the KAUP Push-Pull T144S is the right choice when slip-sheets are regularly used as transport mode. Serially fitted sideshift ensures simple and exact positioning of the attachment.
Like all other KAUP Push-Pulls, this range also has a large surfaced carrying plate for transportation of palletless loads.
Qualities:
- Solid construction
- Good visibility conditions through the attachment
- Good residual capacity
- Self supporting scissor system
- Sideshift serially
