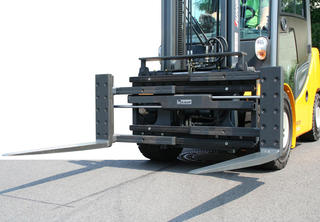

Harbour Clamp T411AH
with independent / valveblock sideshift - 2 hydraulic functions - with bolt-on forks - fork length 1.150 mm
Technical Data
Refer to the data sheet for the exact dimensions of the product variants:
download pdf-datasheet Calculate residual capacity| Model | Cap. on forks kg | Cap. as clamp kg | LCD mm | S* mm | A mm | B mm | D mm | E mm | ISO | V mm | CofG Z mm | Weight kg | Price 人民币 |  calculations(load) capacity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2,5T411AH | 3.000 | 1.600 | 500 | ±100 | 200-1.380 | 1.130 | 45 | 125 | 2 | 176 | 203 | 400 | On request | calculate |
| 2,5T411AH | 3.000 | 1.600 | 500 | ±100 | 200-1.380 | 1.130 | 45 | 125 | 3 | 176 | 203 | 400 | On request | calculate |
| 2,5T411AH | 3.000 | 1.600 | 500 | ±100 | 320-1.620 | 1.130 | 45 | 125 | 2 | 176 | 202 | 402 | On request | calculate |
| 2,5T411AH | 3.000 | 1.600 | 500 | ±100 | 320-1.620 | 1.130 | 45 | 125 | 3 | 176 | 202 | 402 | On request | calculate |
*Also available with valveblock sideshift dependent on opening range.
Load Backrest see model T179.
Specification:
The KAUP Harbour Clamp T411AH is a variation of the fork clamp. Particularly two things make this attachment special: On the one hand on about 2/3 of the hook-on fork length also in the hook-on fork width to rejuvenated sharpened hook-on forks (knife hook-on forks) to be able to take up standing transport property also close together. And on the other hand the parts protected against starting-up damages of the fork clamp - cylinder and side racketeer's unity.
Qualities:
- For hard use suitable
- Good visibility conditions
- Good residual capacity
- Independent sideshift or valveblock sideshift serially
- Bolt-on forks serially
- Cylinder, Ramming, Tube and Side racketeer's protection serially
- Load backrest optionally
