Drum Clamp T415-2

with independent sideshift - for cylindrical steel drums - 2 hydraulic functions, This Drum Clamp can transport 2 or 4 drums palletless and safely.

Technical Data

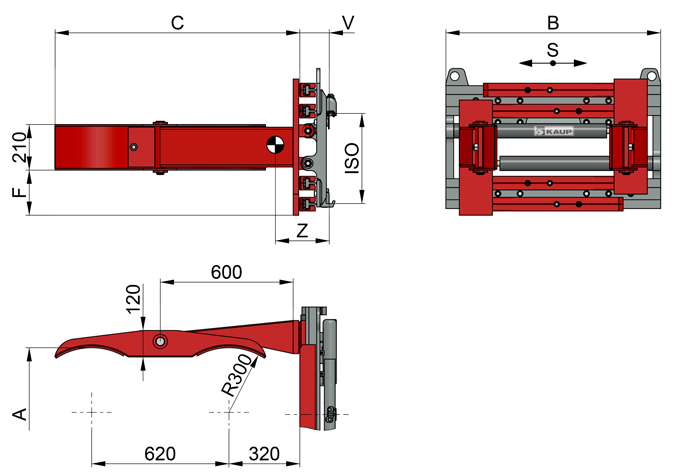

Refer to the data sheet for the exact dimensions of the product variants:

download pdf-datasheet Calculate residual capacity
Model
 Number of drums
 Cap.

kg		 LCD

mm
S
mm
A
mm
B
mm
C
mm
F
mm

ISO
V
mm		 CofG
Z
mm		 CofGv
Y
mm		 Weight

kg		 Price

人民币
options calculations
(load) capacity
1,5T415-2 2-4 1.250 630 ±100 370-1.550 970 1.105 195 2 133 255 266 310 On request calculate
1,5T415-2 2-4 1.250 630 ±100 370-1.550 970 1.105 195 3 133 255 266 310 On request calculate
2T415-2 2-4 2.000 630 ±100 370-1.670 1.130 1.105 195 2 143 245 264 350 On request calculate
2T415-2 2-4 2.000 630 ±100 370-1.670 1.130 1.105 195 3 143 245 264 350 On request calculate
The arms are coated with Remagrip (see coatings in the pricelist).
Fitted with pressure reduction and manometer gauge.C1160
Available with arms for plastic drums upon request.
This version is for cylindric drums with diameter of 600 mm. For other diameters on request.
Also available without sideshift, model T405-2
Load Backrest see model T179.
KAUP Drum Clamp T415-2 on duty.

Specification:

The KAUP Drum Clamp T415-2 can transport two (one in front of the other) or four drums (pre and side by side) safely and without palettes. Therefor the clamp arms are serially vulcanised with rubber.

Qualities:

  • Low lost load - good residual capacity
  • Good visibility conditions
  • Stable construction
  • Independent sideshift serially
