Rotators with higher rotating speeds available upon request
Other fork carriage widths available upon request.
Lateral supporting fork 1.000 mm (add-on-price)
Lateral supporting fork 1.000 mm (add-on-price)
Rotators up to 40 T upon request.
Matching forks for KAUP-Rotators on request.
When forks are used in combination with a Rotator extremely high strain is applied to the lower fork angle when rotating a load which in turn strains the lower brackets.
For this type of operation KAUP recommends forks with strengthened lower brackets. Strengthened lower brackets can be ordered for all ISO forks model T180.
Rotator 360° endless, foundry version T351G
1 hydraulic function
Technical Data

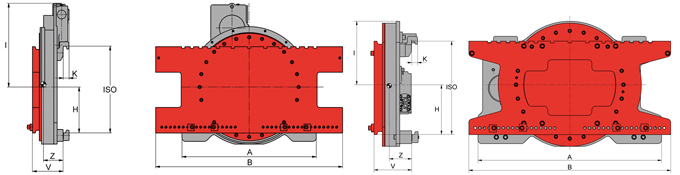

Refer to the data sheet for the exact dimensions of the product variants:
download pdf-datasheet Calculate residual capacity| Model | Cap. kg | LCD mm | A mm | B mm | H mm | I mm | K mm | ISO | Md ∆-P = 125 bar Nm | Req. oil volume per rotation ltr. | V mm | CofG Z mm | Weight kg | Price 人民币 |  calculations(load) capacity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1T351.2G | 1.800 | 500 | 817 | 890 | 203 | 288 | 33 | 2 | 6.013 | 7,6 | 207 | 124 | 250 | On request | calculate |
| 2T351.1G | 2.500 | 500 | 790 | 1.040 | 269 | 515 | 29 | 2 | 7.700 | 9,7 | 174 | 93 | 302 | On request | calculate |
| 2T351.1G | 2.500 | 500 | 790 | 1.150 | 269 | 515 | 29 | 2 | 7.700 | 9,7 | 174 | 95 | 310 | On request | calculate |
| 2,5T351.1G | 3.200 | 500 | 790 | 1.100 | 269 | 515 | 33 | 3 | 7.700 | 9,7 | 179 | 106 | 387 | On request | calculate |
| 3,5T351.1G | 4.000 | 500 | 880 | 1.100 | 381 | 539 | 36 | 3 | 11.815 | 13,8 | 202 | 113 | 525 | On request | calculate |
| 4T351.1G | 5.000 | 500 | 900 | 1.100 | 378 | 595 | 36 | 3 | 14.823 | 17,4 | 221 | 120 | 575 | On request | calculate |
| 4,5T351.1G | 5.000 | 500 | 900 | 1.350 | 328 | 695 | 40 | 4 | 14.823 | 17,4 | 231 | 129 | 670 | On request | calculate |
| 5T351.2G | 6.000 | 600 | 1.080 | 1.350 | 351 | 460 | 40 | 4 | 13.434 | 15,7 | 275 | 167 | 725 | On request | calculate |
| 6T351.2G | 6.500 | 600 | 1.260 | 1.350 | 351 | 460 | 40 | 4 | 17.157 | 20,7 | 275 | 155 | 842 | On request | calculate |
| 8T351.2G | 8.000 | 900 | 1.300 | 1.600 | 396 | 480 | 40 | 4 | 21.679 | 18,8 | 304 | 175 | 1.080 | On request | calculate |
Other fork carriage widths available upon request.
Lateral supporting fork 1.000 mm (add-on-price)
Lateral supporting fork 1.000 mm (add-on-price)
Rotators up to 40 T upon request.
Matching forks for KAUP-Rotators on request.
When forks are used in combination with a Rotator extremely high strain is applied to the lower fork angle when rotating a load which in turn strains the lower brackets.
For this type of operation KAUP recommends forks with strengthened lower brackets. Strengthened lower brackets can be ordered for all ISO forks model T180.
Specification:
The KAUP Rotator 360° endless T351 is also available in a foundry implementation. This attachment is adapted to the demands of this operational area with a closed fork carriage plate and a closed base plate as well as heat-resistant covered hydraulic tubes. Otherwise this rotator resembles the T351.
Qualities:
- Foundry implementation
- Good residual capacity
- Rotation 360° endlessly
- Robust construction with gear drive
- Original forks usableLateral supporting fork and load stabilizers optionally
