Push-Pull with sheet saver T145S
1 hydraulic function - and built-in solenoid valve with accessory kit
Technical Data

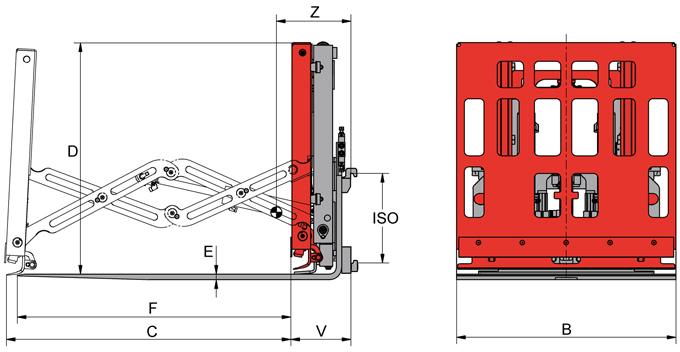

Refer to the data sheet for the exact dimensions of the product variants:
download pdf-datasheet Calculate residual capacity| Model | Cap. kg | LCD mm | B mm | C mm | D mm | E mm | F mm | ISO | V mm | CofG Z mm | Weight kg | Price 人民币 |  calculations(load) capacity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1T145S | 1.000 | 600 | 1.000 | 1.300 | 1.035 | 20 | 1.250 | 2 | 260 | 330 | 575 | On request | calculate |
| 2T145S | 1.700 | 600 | 1.000 | 1.300 | 1.035 | 25 | 1.250 | 2 | 265 | 345 | 635 | On request | calculate |
| 2T145S | 1.700 | 600 | 1.000 | 1.300 | 1.035 | 25 | 1.250 | 3 | 265 | 345 | 635 | On request | calculate |
| 3T145S | 2.400 | 600 | 1.000 | 1.300 | 1.035 | 30 | 1.250 | 3 | 270 | 365 | 690 | On request | calculate |
Specification:
Mounted directly on to the fork carriage the KAUP Push-Pull with sheet saver T145S is the right choice when slip-sheets are regularly used as transport mode. In order to separate the complete load from the slip-sheet during pushing, the attachment is fitted with a so called pallet retainer. It grips the slip-sheet firmly while the load is pushed off so that the slip-sheet can be used several times.
Like all other KAUP Push-Pulls, this range also has a large surfaced carrying plate for transportation of palletless loads.
Qualities:
- Solid construction
- Good visibility conditions through the attachment
- Good residual capacity
- Self supporting scissor system
