The standard contact pad frame is alternatively available in 770 x 920 mm or 800 x 1.000 mm.

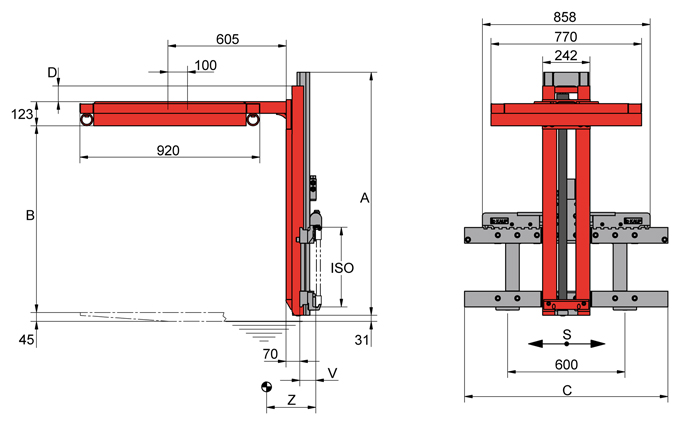

To choose the right fork length please consider 70 mm overhang (see drawing).
Increased contact pad on request.
Increased fork carriage widths available upon request.
Load Stabilizer T155ST
Optimized for maximum residual capacity by carriages beside the frame - 2 hydraulic functions
Technical Data
Refer to the data sheet for the exact dimensions of the product variants:
download pdf-datasheet Calculate residual capacity| Model | Cap. kg | LCD mm | A mm | B mm | C mm | D mm | P mm | R mm | T mm | Closing force at 120 bar N | ISO | S mm | V mm | CofG Z mm | CofGv Y mm | CofGv Y1 mm | Weight kg | Price 人民币 |  calculations(load) capacity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1T155ST | 2.500 | 500 | 1.240 | 960-1.970 | 890 | 80 | 605 | 800 | 1.000 | 3.700 | 2 | ±100 | 82 | 208 | 577 | 1.041 | 236 | On request | calculate |
| 1T155.1ST | 2.500 | 500 | 1.240 | 960-1.770 | 890 | 10 | 605 | 800 | 1.000 | 3.700 | 2 | ±100 | 82 | 210 | 567 | 935 | 232 | On request | calculate |
| 1T155.2ST | 2.500 | 500 | 920 | 760-1.350 | 890 | 10 | 605 | 800 | 1.000 | 3.700 | 2 | ±100 | 82 | 221 | 470 | 740 | 214 | On request | calculate |
| 1T155.3ST | 2.500 | 500 | 1.495 | 960-2.170 | 890 | 280 | 605 | 800 | 1.000 | 3.700 | 2 | ±100 | 82 | 200 | 623 | 1.178 | 251 | On request | calculate |
| 1T155.4ST | 2.500 | 500 | 1.240 | 1.070-2.080 | 890 | 10 | 605 | 800 | 1.000 | 3.700 | 2 | ±100 | 82 | 207 | 606 | 1.072 | 237 | On request | calculate |
| 1T155.5ST | 2.500 | 500 | 1.495 | 1.200-2.210 | 890 | 10 | 605 | 800 | 1.000 | 3.700 | 2 | ±100 | 82 | 201 | 674 | 1.138 | 250 | On request | calculate |
To choose the right fork length please consider 70 mm overhang (see drawing).
Increased contact pad on request.
Increased fork carriage widths available upon request.
Specification:
The KAUP Stabilizer with optimised residual capacity has a contact pad frame mounted directly into the fork carriage of the attachment and therefore achieves a low lost load centre. The sideshift stroke allows the driver to compensate inaccuracies.
Qualities:
- Solid construction
- Good visibility conditions
- Good residual capacity
- Independent sideshift serially
