Load Stabilizer T124 ST

1 hydraulic function

Technical Data

Refer to the data sheet for the exact dimensions of the product variants:

download pdf-datasheet Calculate residual capacity

Model	A mm	B mm	C mm	P mm	R mm	T mm	Closing force at 120 bar N	ISO	V mm	CofG Z mm	CofG_v Y mm	CofG_v Y1 mm	Weight kg	Price 人民币	calculations (load) capacity
1T124ST	1.515	1.175-2.995	1.650	605	800	1.000	3.700	2	204	217	749	1.732	273	On request	calculate
1T124ST	1.515	1.175-2.995	1.650	605	800	1.000	3.700	3	204	217	749	1.732	273	On request	calculate
1T124.1ST	1.190	950-2.570	1.550	605	800	1.000	3.700	2	204	231	627	1.515	248	On request	calculate
1T124.1ST	1.190	950-2.570	1.550	605	800	1.000	3.700	3	204	231	627	1.515	248	On request	calculate
1T124.2ST	940	750-1.930	1.160	605	800	1.000	3.700	2	204	253	522	1.190	216	On request	calculate
1T124.2ST	940	750-1.930	1.160	605	800	1.000	3.700	3	204	253	522	1.190	216	On request	calculate

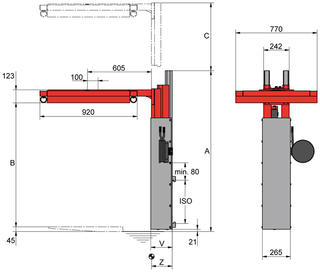

The total height is the result of adding fig. A + C.
To choose the right fork length please consider dimension „V“.
The standard contact pad frame is alternatively available in 770 x 920 mm or 800 x 1.000 mm.
Increased contact pad on request.

Specification:

The KAUP Telescopic Load Stabilizer T124ST has a large opening range with a low construction height. Therefore this Load Stabilizer is best suited for large volume goods, e.g. for stabilizing and securing stacks of Euro pallets.
