Fork Positioner T411 BZ

with valveblock sideshift dependent on the opening range - 2 hydraulic functions

Model
 Cap.

kg		 LCD

mm
A
mm
B
mm
D
mm
E
mm
G
mm		 VSmax

mm

ISO
V
mm		 CofG
Z
mm		 CofGv
Y
mm		 Weight

kg		 Price

人民币		 Add-on price per 100mm fork length

人民币
options
4T411BZ 4.500 500 330-2.530 2.030 60 120 1.200 ±550 3 168 184 264 805 On request On request
4,8T411BZ 6.000 500 220-1.850 1.550 60 150 1.200 ±407,5 3 184 209 275 885 On request On request
5T411BZ 6.300 600 220-1.850 1.550 60 150 1.200 ±407,5 4 184 203 321 925 On request On request
5T411BZ 6.300 600 180-2.080 1.860 60 150 1.200 ±475 4 184 195 325 1.010 On request On request
5T411BZ 6.300 600 380-2.4801) 1.860 60 150 1.200 ±525 4 184 195 326 1.014 On request On request
5T411BZ 6.300 600 310-2.5101) 2.030 60 150 1.200 ±550 4 184 191 328 1.046 On request On request
6T411BZ 8.000 600 170-1.800 1.550 60 200 1.200 ±407,5 4 194 233 314 1.165 On request On request
6T411BZ 8.000 600 130-2.030 1.860 60 200 1.200 ±475 4 194 226 318 1.225 On request On request
6T411BZ 8.000 600 330-2.4301) 1.860 60 200 1.200 ±525 4 194 225 319 1.229 On request On request
6T411BZ 8.000 600 200-3.8001) 3.390 50 300 1.200 ±900 4 194 218 315 1.545 On request On request
8T411BZ 8.000 900 210-1.8401) 1.550 70 200 1.200 ±407,5 4 230 230 333 1.435 On request On request
8T411BZ 8.000 900 330-2.5301) 2.000 70 200 1.200 ±550 4 230 219 339 1.564 On request On request
8T411BZ 8.000 900 400-2.9001) 2.400 70 200 1.200 ±625 4 230 211 344 1.672 On request On request
8T411BZ2) 5.000 1.200 2.600-5.6001) 4.500 70 200 1.200 ±750 4 230 135 380 2.515 On request On request
1) Transport of europallets lengthwise not possible.
2) Alternatively available with third fork in the centre. (add-on-price)
Not suitable for clamping between the forks.
With screw-on forks available upon request T411BZA
Load Backrest see model T179.
Also available without sideshift, model T401BZ

Specification:

The KAUP hook-on Fork Positioner T411BZ is a robust attachment with large opening ranges for exceptionally heavy duty operation - ideal for uneven surfaces. The construction of this Fork Positioner predestines it for handling long loads and steel girders and especially for heavy duty operation in, for example, concrete plants.

Qualities:

  • Very large opening ranges
  • Good residual capacity
  • Valve block sideshift - dependent on opening range - serially
  • Opening range significantly larger than the construction width
  • Independent sideshift optionally
  • Screw-on forks optional

KAUP China

Product Inquiry

* Mandatory fields

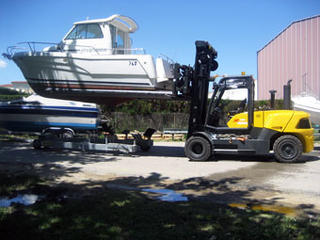

The Fork Positioner T411 BZ on duty. The Fork Positioner T411 BZ on duty.
