Adapter Carriage T 013.1 / T013.2

for changing to different ISO class

Technical Data

Refer to the data sheet for the exact dimensions of the product variants:

download pdf-datasheet Calculate residual capacity
Model
 Cap.

kg		 LCD

mm
B
mm
W1
ISO
W2
ISO
V
mm		 CofG
Z
mm		 CofGv
Y
mm		 Weight

kg		 Price

人民币
options calculations
(load) capacity
2T013.1 2.500 600 980 2 3 68 32 245 103 On request calculate
2T013.1 2.500 600 1.040 2 3 68 32 244 106 On request calculate
2T013.1 2.500 600 1.150 2 3 68 36 237 126 On request calculate
2T013.2 2.500 600 980 3 2 75 41 242 130 On request calculate
2T013.2 2.500 600 1.040 3 2 75 41 242 135 On request calculate
2T013.2 2.500 600 1.150 3 2 75 43 243 152 On request calculate
4,8T013.1 5.000 600 1.150 3 4 93 45 277 185 On request calculate
4,8T013.1 5.000 600 1.200 3 4 93 46 274 189 On request calculate
4,8T013.1 5.000 600 1.350 3 4 93 48 269 205 On request calculate
4,8T013.1 5.000 600 1.800 3 4 103 59 241 302 On request calculate
4,8T013.2 5.000 600 1.350 4 3 100 57 351 260 On request calculate
4,8T013.2 5.000 600 1.800 4 3 110 66 356 346 On request calculate
Load Backrest see model T179.
Other construction widths available upon request.
Fork Carriage with artificial lost load center distance available upon request.

Specification:

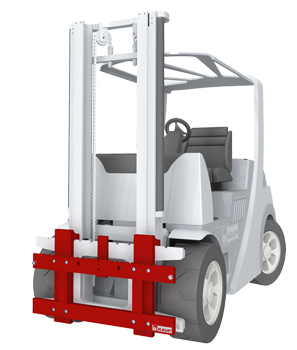

KAUP Fork Carriages type T013.1 and T013.2 can be used as adapter for changing to different ISO classes. This makes it possible to use an existing attachment even when the forklift truck is changed.

Qualities:

  • Solid construction for heavy duty operation
  • Best visibility
