Differing lengths of rams and versions for various shaped drums upon request.
Optionally available with rubber buffers instead of rollers.
Cask Handler T415W / WD
with independent sideshift - 2 hydraulic functions
Technical Data

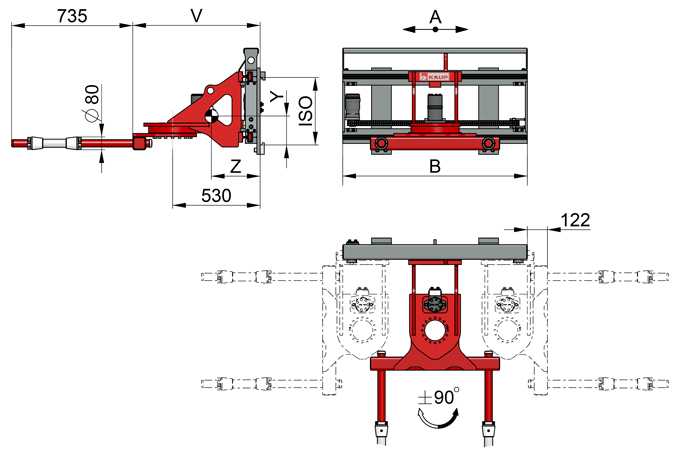

Refer to the data sheet for the exact dimensions of the product variants:
download pdf-datasheet Calculate residual capacityModel | Cap. kg | LCD mm | A mm | B mm | ISO | V mm | CofG Z mm | CofGv Y mm | Weight kg | Price 人民币 |
---|---|---|---|---|---|---|---|---|---|---|
0.3T415W | 300 | 475 | ±440 | 1.120 | 2 | 773 | 296 | 176 | 250 | On request |
0.3T415WD | 300 | 475 | ±440 | 1.120 | 2 | 853 | 333 | 171 | 265 | On request |
0.6T415W | 600 | 400 | ±400 | 1.120 | 2 | 1.230 | 530 | 153 | 285 | On request |
Optionally available with rubber buffers instead of rollers.
