Beer Keg Clamp 2T415B

with independent sideshift - to handle beer kegs - 2 hydraulic functions + 1 solenoid valve

Technical Data

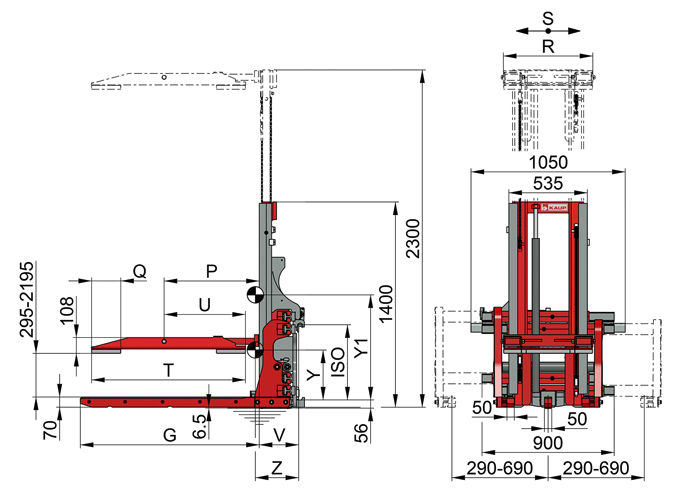

Refer to the data sheet for the exact dimensions of the product variants:

download pdf-datasheet Calculate residual capacity

---

Model	Cap. kg	LCD mm	S mm	G mm	T mm	P mm	R mm	Q mm	U mm	ISO	V mm	CofG Z mm	CofGv Y mm	CofGv Y1 mm	Weight kg	Price 人民币	calculations (load) capacity
2T415BTB	1.680	635	±100	1.220	1.050	650	610	200	555	3	270	313	337	761	725	On request	calculate
2T415BCT	1.680	635	±100	1.350	1.110	650	555	200	555	3	270	321	336	723	720	On request	calculate
2T415BKN	1.680	635	±100	1.220	985	570	600	300	490	3	270	295	340	716	702	On request	calculate

Also available without sideshift, model T405
